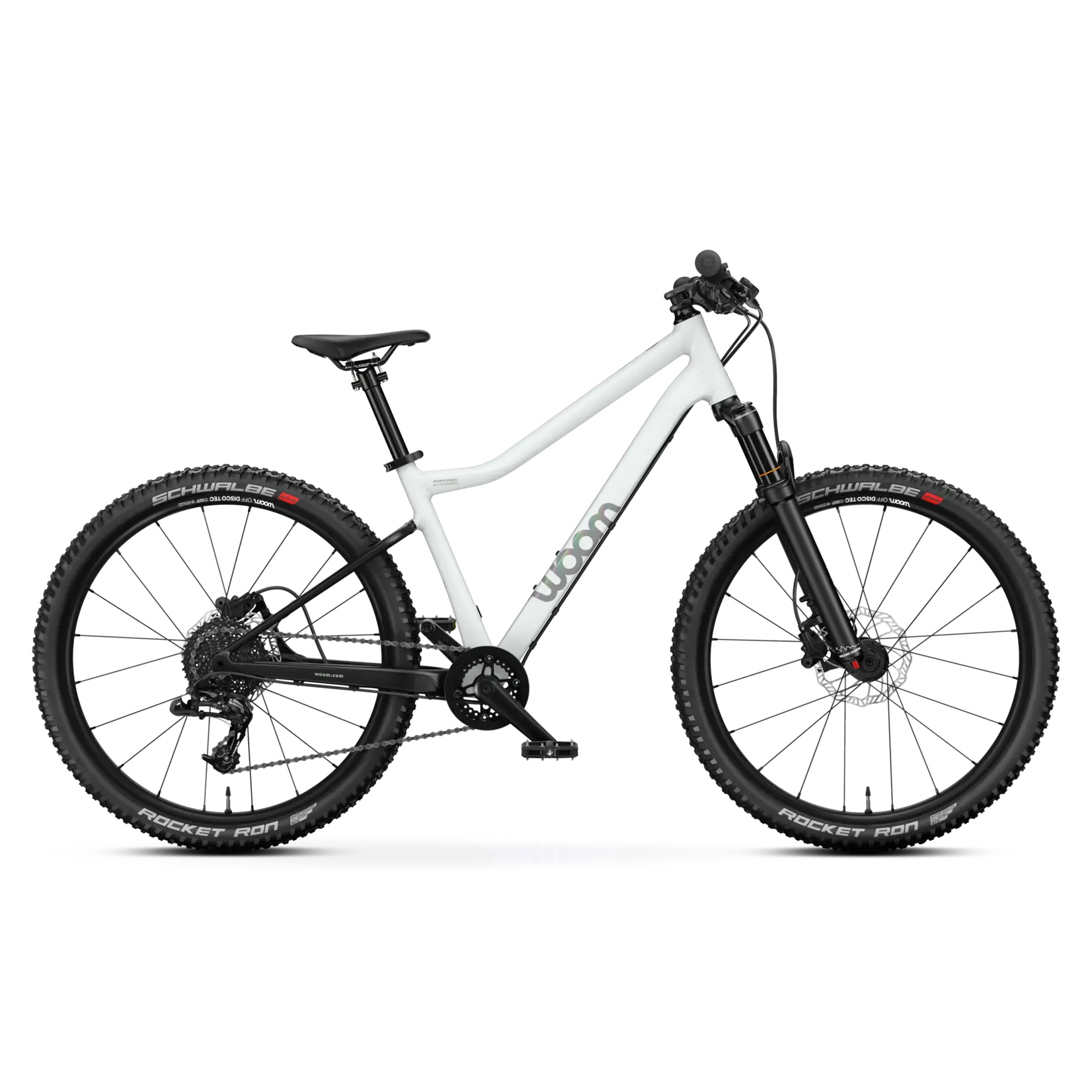

The next-generation woom OFF AIR 5 is an ultralight front suspension mountain bike with an ergonomic design for children aged seven years and over who want to level up their skills and fun. Tricky trails and rough descents recommended. Its premium front suspension and proven hydraulic disc brakes are nothing short of impressive, meaning that your child can expect exceptional handling and a whole lot of fun.
Specifications
Frame
- Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes
- 24″ wheels
- Confidence-inspiring handling: an easy-access low top tube, low center of gravity and long wheelbase provide good balance and make for a fun, safe ride
- Dropper seatpost compatible
- Hard-wearing plastic chainstay protector
Gears
- 9-speed gearing
- SRAM X5 trigger shifter
- SRAM X5 rear derailleur
Fork
- Aluminum air-sprung suspension fork from RST
- Rebound and compression damping adjustment, plus lockout function
- 80 mm travel
- 1 1/8″ – 1″ baby taper steerer tube
- 100 x 15 mm thru-axle
- Post mount for disc brake
Wheels
- Lightweight, tubeless-ready aluminum rims from Alexrims
- Size: 24″
- Aluminum hubs with sealed industrial bearings
- Thru-axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
- 20 spokes, double-crossed spoking
- Aluminum nipples
Headset
- Fully integrated 1 1/8″ – 1″ headset
- Sealed industrial-grade bearings
Tires
- 24 x 2.35" Schwalbe Rocket Ron
- ADDIX SPEED rubber compound and Tubeless Easy technology
- May be ridden tubeless
- Presta valves
Stem
- Forged aluminum
- CNC-machined
- Handlebars attached via two clamps
- +/-15° flip-flop design to adjust handlebar height
- Length: 50 mm
Saddle
- MTB-specific saddle
- Trail-ready design
- Ergonomic and age-appropriate design to fit the rider's pelvis
- Side protection to lean against walls
Handlebars
- Wide, lightweight aluminum bars with tapered ends
- Width: 585 mm
- Rise: 20 mm
Seatpost
- 27.2 x 250 mm
- Anodised aluminum seatpost with insertion marks that indicate the minimum insertion depth
Grips
- Child-friendly thanks to small diameter
- Ultra comfortable with reinforced contact surface for palms
- 100% silicone for maximum grip
- Clamped design to eliminate twisting
Seatpost clamp
- Quick-release aluminum seatpost clamp
- Extra-long quick-release lever, easy to operate requiring minimal strength
- No risk of turning and/or twisting
Drivetrain
- Lightweight forged aluminum cranks
- 130 mm in length with a narrow Q-factor
- Narrow-wide chainring with 28 teeth
- Cassette with 11-34 teeth
- Platform pedals made from fiber-reinforced nylon with metal pins for added grip
- Cr-Mo axle and sealed industrial-grade ball bearings
Brakes
- Hydraulic disc brakes by Promax
- Rotor diameter front/back: 160/160 mm
- Ergonomic brake levers designed for children's hands
Included tools
- 4 mm hex key for stem
- 8 mm hex key for front wheel and pedals
