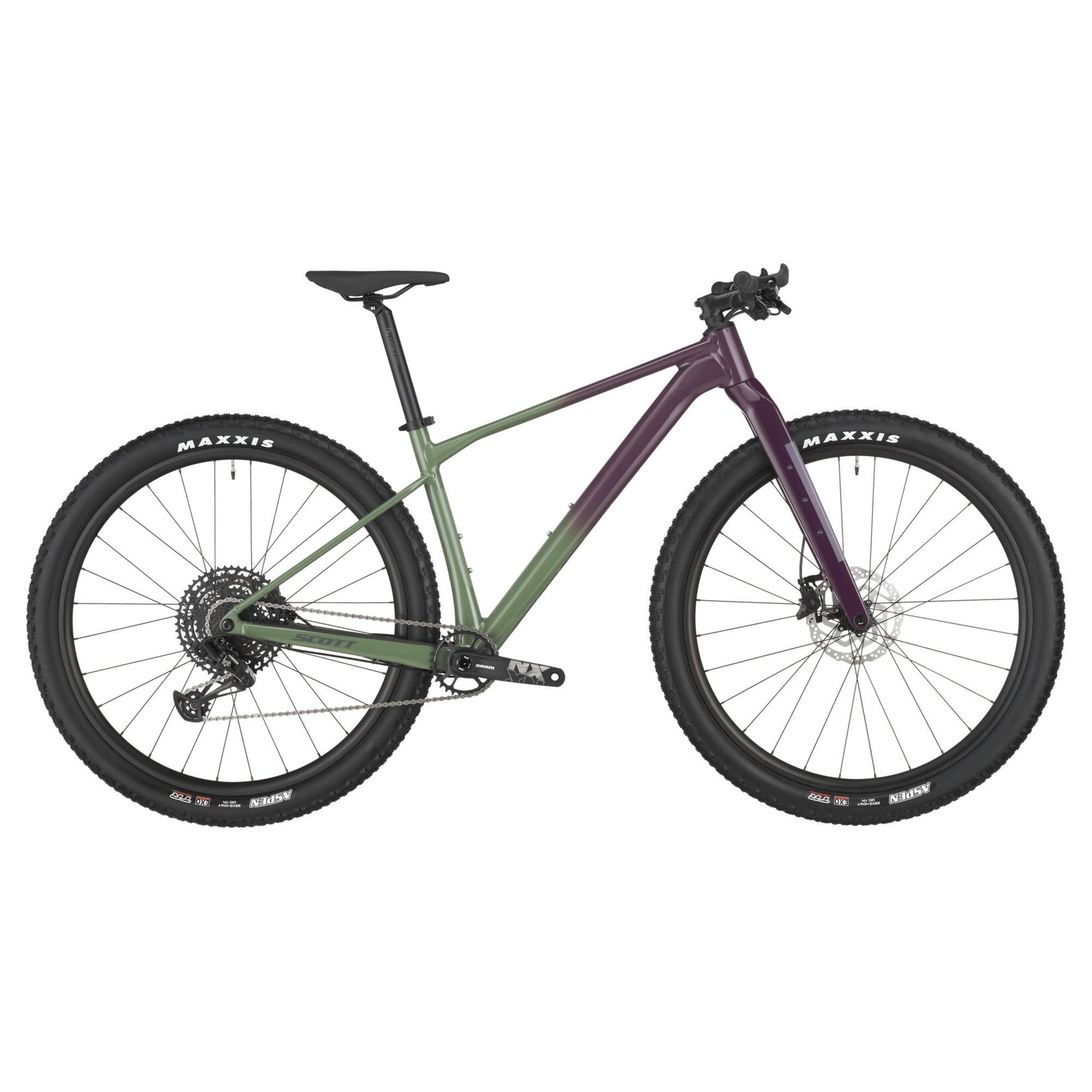

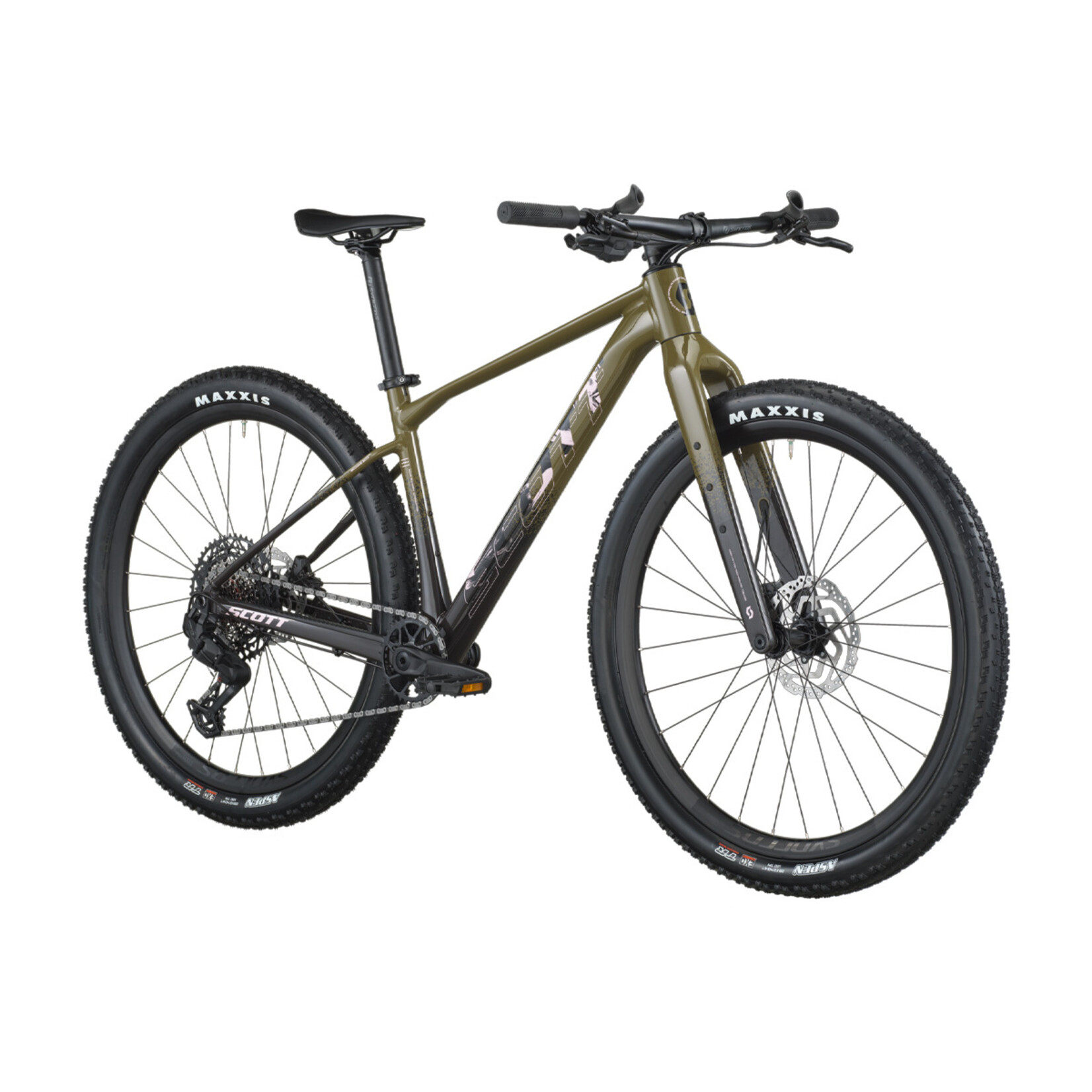

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.

• FRAME

  Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System
  BB92, UDH Interface, 12x148mm with 55mm Chainline

• FORK

  Scale Rigid HMF
  Postmount Disc Standard
  Tapered Carbon steerer

• REAR DERAILLEUR

  SRAM Eagle 70 Transmission 12 Speed

• SHIFTERS

  SRAM Eagle 70 Trigger

• CRANKSET

  SRAM Eagle 70 Transmission
  DUB, 55mm CL, 34T

• CHAINGUIDE

  SCOTT custom

• BB-SET

  SRAM DUB PF 92 MTB Wide, shell 41x92mm

• CHAIN

  SRAM CN Eagle 70 Transmission

• CASSETTE

  SRAM Eagle XS 1270 V2 Transmission 10-52

• BRAKES

  Shimano MT401 Disc Brake

• ROTOR

  Shimano SM-RT10 CL, 180/F and 160/R

• HANDLEBAR

  Syncros Alloy 6061
  T shape Flat, 9°, 740mm
  Syncros Performance XC lock-on grips

• H'STEM

  Syncros DC 3.0
  Syncros Cable Integration System
  0° rise, 6061 Alloy, 31.8mm, 1 1/8"

• SEATPOST

  Syncros, 31.6x400mm

• SEAT

  Syncros Belcarra V2.5 Cut Out

• HEADSET

  Syncros - Acros OE Cable Routing HS System
  OD 50/62mm, ID 42/56mm

• HUB (FRONT)

  Formula CL-811, 15x110mm

• HUB (REAR)

  Formula CL-3248, 12x148mm

• SPOKES

  Stainless Black 15G, 1.8mm

• RIMS

  Syncros X-28, 28H, Tubeless ready

• FRONT TIRE

  Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
  Tubeless Ready, EXO

• REAR TIRE

  Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
  Tubeless Ready, EXO

• ACCESSORIES

  Spirgrips+ Inner Bar ends

• APPROX WEIGHT IN KG

  11.4 (Tubless setup without pedals)

• APPROX WEIGHT IN LBS

  25.13 (Tubless setup without pedals)

• MAX. SYSTEM WEIGHT

  120kg
  The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
