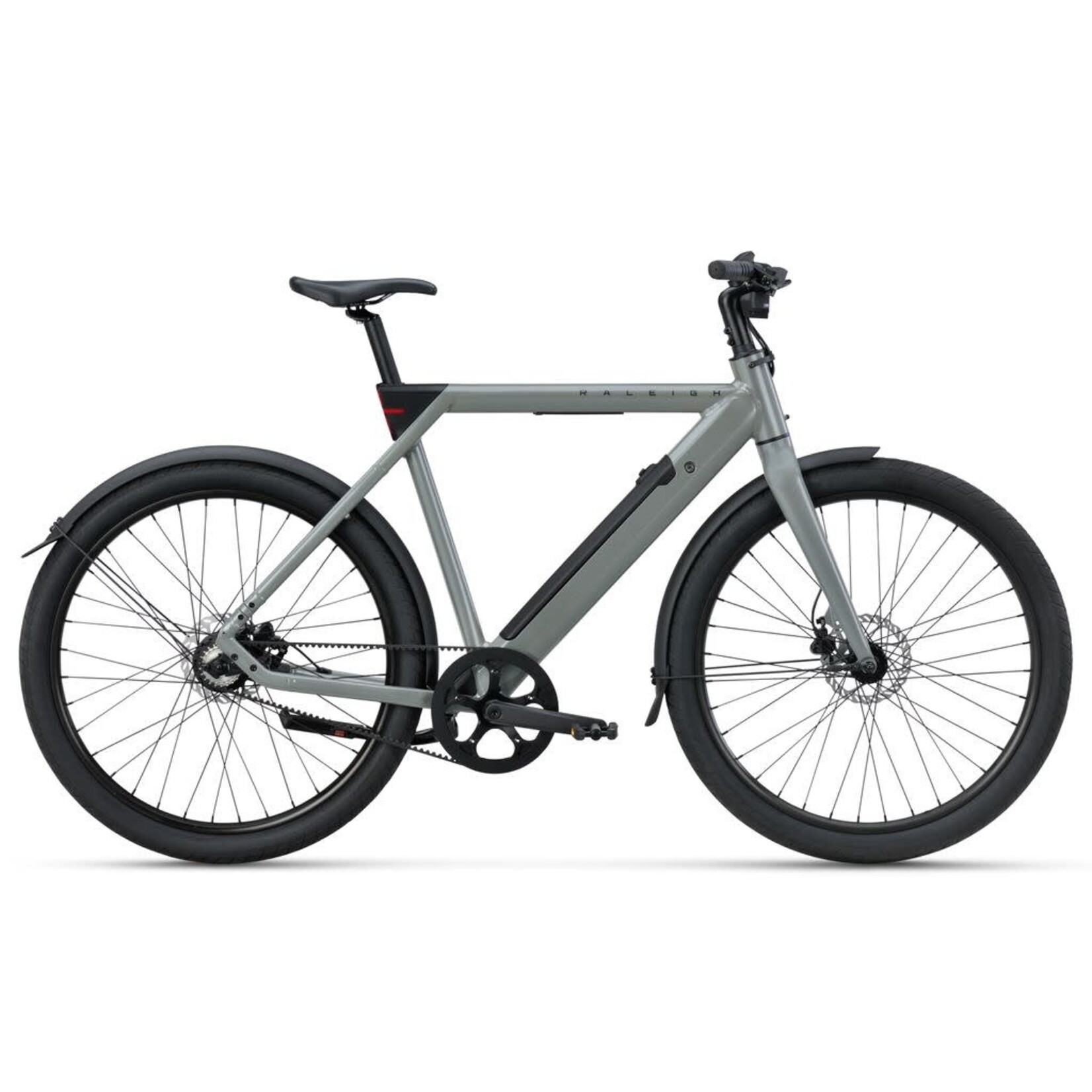

Raleigh ONE ebike Grey

Meet the Raleigh ONE – our smart connected e-bike built for the everyday journey and the extraordinary detour. With high-quality, low-maintenance components and app-enabled features the ONE is your ultimate city companion. Tap into one of our membership services to unlock even more: theft alerts, smart maintenance, and total peace of mind. Inspired by legacy, connected to the now. This is Raleigh ONE.

Fully connected smart bike via app
Integrated TCU Tracking / Alarm / Telemetry /data
Mivice 250Wh Hub Motor
Removeable 360Wh Battery
Gates belt driv
Specification
Bike Geometry

Chain stay length [mm]: 474 mm

Head tube angle: 72.5 degrees

Head tube length [mm]: 145 mm

Reach [mm]: 430 mm

Stack [mm]: 602 mm

Stand over height [mm]: 830 mm

Seat tube angle: 72.5 degrees

Seat tube length [mm]: 582 mm

Wheelbase [mm]: 1106 mm
Brake system

Brake Front Mount: Post Mount

Brake Rear Mount: Post Mount

Brake Front Description: Tektro, Hydraulic Disc brake, HD-T3020

Brake Rear Description: Tektro, Hydraulic Disc brake
Carrier

Carrier Front Description: Optional
Drivetrain

Cassette Teeth: 22

Crankset Teeth: 60

Crankset Type: single

Number Of Gears: 1

Chain Description: Gates, Belt

Crankset Description: Samox, EC33-F0-JIS-R EC33-F5-JIS-L

Gear Description: Single Speed
E-bike components

Battery Location: Downtube

Battery Removeable: Yes

Max Support Speed [km/h]: 25 km/h

Motor Location: Rearwheel

Sensor: Pedalforce

Power Handle: Yes

Battery Description: Vestel, 36V x 360 Wh

Charger Description: MIVICE, Quick Charger, 5A

Motor Description: MIVICE
Frame and more

Framesize: 58 cm

Front Fork Type: Non Suspension

Frame Description: Aluminium
Handlebar and Saddle

Handlebar Material: Aluminium

Seatpost Material: Aluminium

Handlebar Description: Raleigh, One piece handlebar with stem design by Raleigh

Headset Description: Integrated, 1.5"+1.5"

Saddle Description: Velo, VL-3625

Seatpost Description: Non Suspension
Lighting

Front Light Description: Via E-bike System, Integrated front light, 170lm K-mark certified

Rear Light Description: Integrated rear light, 10lm K-mark certified
Locks

Lock Description: GNSS + LTE-M
Other

Connectivity App: Yes
Wheels and wheel components

Tyre Description: 56-584

Wheelsize Description: 27.5
