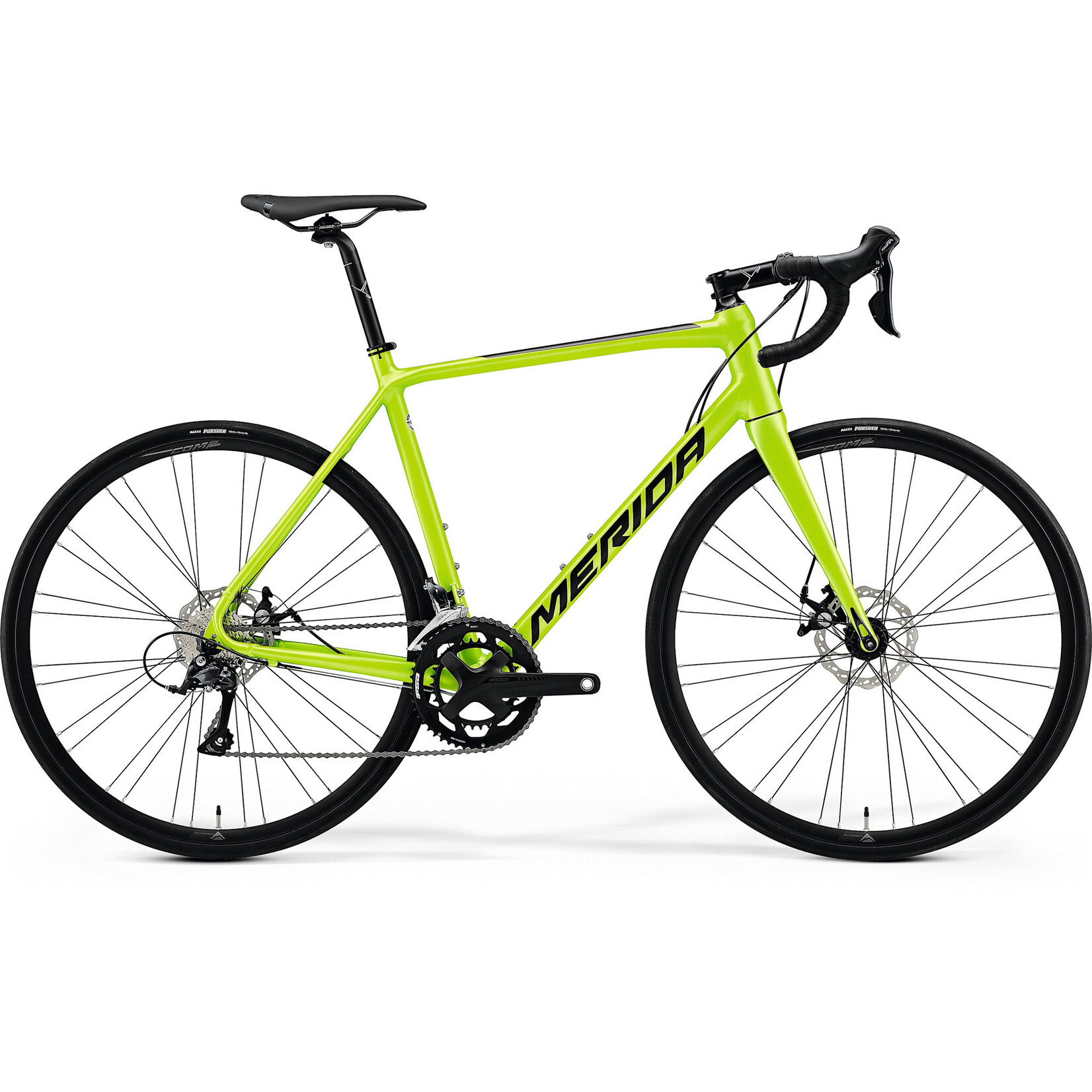

Merida SCULTURA 200 Road Bike

The Scultura has always been the powerhouse of any Merida sponsored or supported ProTour teams powering them to world tour stage victories.

The Lite frame uses cutting edge aluminium technology - 6066 series triple butted and hydroformed aluminium tubing with smooth welding to deliver a light responsive frame. The tapered full carbon fork delivers precise steering.

Lightweight aluminium frame
Full carbon tapered fork
Shimano Sora gearing
FSA Omega chainset with compact gearing
Promax mechancial disc brakes
Maxxis Pursuer 25c Kevlar bead folding tyres

SPECIFICATIONS

MODEL YEAR 2022

FRAME SCULTURA Disc LITE

FRAME SIZE 3XS, XXS, XS, S, S/M, M/L, L, XL

FORK SCULTURA CF2 Disc

RIM MERIDA COMP SL

HUBS Joytech D981-12 / Joytech D982TSE-R

FRONT TYRE Maxxis Pursuer

REAR TYRE Maxxis Pursuer

HUBS MERIDA EXPERT SL

CRANK FSA Omega

BOTTOM BRACKET FSA BB-AL86/Ø19

CASSETTE Microshift CS-9S

CHAIN KMC M99

SHIFTERS Shimano Sora

FRONT DERAILLEUR Shimano Sora

REAR DERAILLEUR Shimano Sora

BRAKE LEVER Shimano Sora

BRAKES Promax DSK-330R

ROTORS Promax 160G

HEADSET MERIDA M2339

STEM MERIDA COMP CC

STEM SIZE 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL

HANDLEBAR MERIDA EXPERT SL

GRIP MERIDA ROAD Comp

SEAT POST MERIDA COMP CC

SADDLE MERIDA COMP SL

SEAT CLAMP MERIDA EXPERT

GEOMETRIES

FRAME SIZE	3XS	XXS	XS	S	S/M	M/L	L	XL
TYRE SIZES	28"	28"	28"	28"	28"	28"	28"	28"
ST SEAT TUBES MM	410	440	470	500	520	540	560	590
TT TOP TUBES MM	500	515	520	530	545	560	575	590
CS CHAIN STAYS MM	408	408	408	408	408	408	408	408
HTA HEAD TUBE ANGLE [°]	70.5	71	71	72	73	73	73	73.5
STA SEAT TUBE ANGLE [°]	75	75	74.5	74	74	73.5	73	73
BD BOTTOM BRACKET DROPS MM	70	66	66	66	66	66	66	66
HT HEAD TUBE LENGTHS MM	100	120	130	140	150	170	190	215
FL FORK LENGTHS MM	374	374	374	374	374	374	374	374
R REACH MM	366	376	373	375	386	390	394	401
S STACKS MM	498	519	529	542	555	574	593	619
WB WHEEL BASE MM	978	982	983	979	985	995	1005	1014
SH STAND OVER HEIGHT MM	668	697	720	744	762	779	798	826
