The aerovolution

To create an aero bike that controls airflow, Bianchi borrowed ideas from innovative technology sectors, including automotive, aerospace and architecture. The goal is to lead the air to very specific areas of the frame, ensuring airflow is as close to the surfaces of the bike and rider as possible. The far-thinking design is enhanced by a judicious balance of paint and exposed carbon, creating a fearsome racing aesthetic that never for a second compromises on the overall weight of the Oltre.

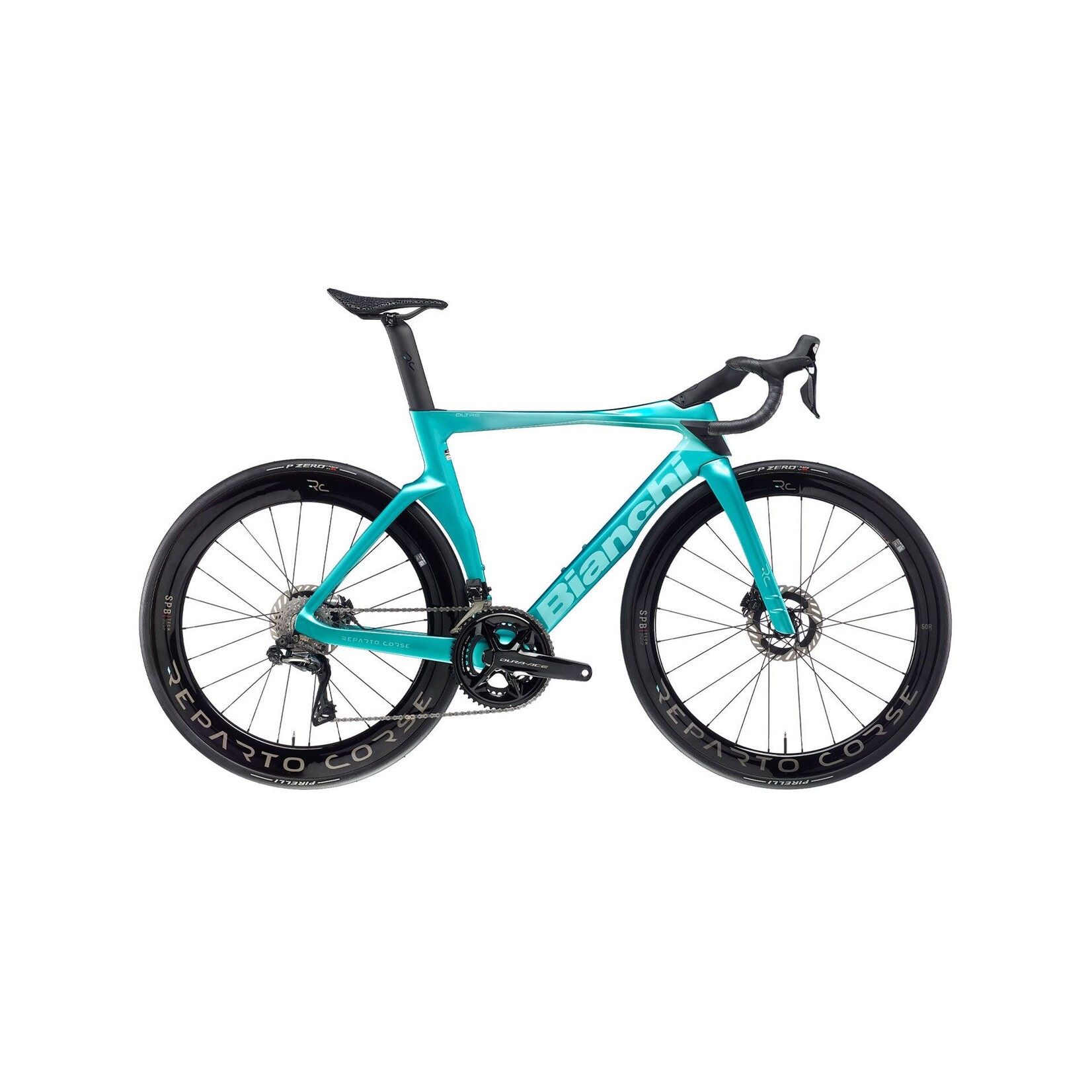

Features of the Bianchi OLTRE RC

• RC full carbon aero frame
• Exclusive Air Deflector technology
• Electronic 2x12-speed Dura-Ace Di2 groupset
• 4iiii Precision Powermeter crank
• Full carbon aero seatpost
• Fully integrated cable routing
• Bianchi RC139 Carbon Air saddle

Play YouTube video

Details of the Bianchi OLTRE RC

Aero cockpit | The proprietary design of the cockpit reduces drag. It does this with integration of the handlebar and stem, and strategically-placed Aero Profiles along the top of the bar. These Aero Profiles are placed to reflect the flow of air over your bars, and offer an additional marginal aerodynamic gain. The cavity in the centre generates a vortex behind it that reduces the air pressure and resistance hitting the athlete’s legs, so less power is needed to create more speed.

Air Deflector technology | A Bianchi technology exclusive to the world, The Air Deflector (Patent Pending) simultaneously reduces the drag against the frame and amplifies the work done by the handlebar by protecting the low pressure area it creates for the legs.

Each movement refined | Each detail of the Oltre is considered, analysed and refined, amplifying the efficiency and power of every pedal stroke. From the down tube to the seat post to the dropouts, every marginal gain has been harnessed.

Reparto Corse saddle | All-new Bianchi-made components, an historic first for the brand. The product of Reparto Corse’s tireless innovation, its impassioned pursuit of excellence in speed. The RC139 Carbon Air is an elite-level racing saddle with a carbon shell and padding constructed using cutting-edge 3D technology.

TECH SPECS

• FRAMESET

  1. FRAME

     Oltre RC carbon aero shape, electronic drivetrain only, headset 1.1/4-1.1/4,BB-PressFit 86,5x41mm, integrated seat clamp, for flat mount caliper, internal cable routing for disc brakes, thru axle 12x142mm, sizes 47-50-53-55-57-59cm

  2. FORK

     Full Carbon aero, Disc brakes, integrated head 1.1/4, flat mount caliper, thru axle 12x100mm

  3. HEADSET

     Fsa No. 54 - MR137 - ACB 1-1/4diam.46.9x diam.37x7

• DRIVETRAIN

  1. SHIFTERS

     Shimano Durace Di2 hydraulic disc brake for road, ST-R9270, BR-R9270, for 160mm rotor

  2. REAR DERAILLEUR

     Shimano Durace Di2 12sp, RD-R9250

  3. FRONT DERAILLEUR

     Shimano Durace Di2 12sp,FD-R9250

  4. CRANKSET

     Shimano, Durace 12sp, FC-R9200, 4iiii precision 3+ dual side power meter, 52x36T, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm

  5. BOTTOM BRACKET

     Shimano, SM-BB92-41B, press fit for road

  6. CHAIN

     Shimano Durace 12sp, CN-M9100

  7. CASSETTE

     Shimano Durace 12sp, CS-R9200, 11-12-13-14-15-16-17-19-21-24-27-30T

• BRAKES

  1. BRAKES

     Shimano BR-R9270 Hydraulic disc brake, included in the shifter

  2. ROTOR

     Shimano CL900, centerlock type w/Ice Tech, 160mm front and rear

• WHEELS

  1. WHEELS

     Reparto Corse Carbon SPB 50mm profile, 700x21c, (front), Reparto Corse Carbon SPB 65mm profile, 700x21c, XDR body (rear), 3K and UD high strength carbon fiber, tubeless ready, weight per set: 1520 gr (+/-5%)

  2. TIRE

     Pirelli P ZERO™ Race SL TLR , 28-622, 120 tpi

• COCKPIT

  1. STEM

     Integrated handlebar Integrated Aero bar, material carbon, drop 125mm, reach 80mm, Di2 compatible Ext: 90x400-47/50cm ; 100x420-53cm; 110x420-55/57cm; 120x440-59cm

  2. HANDLEBAR

     Included in the stem

  3. GRIPS / EXTENSIONS

     Bianchi Arrow premium tape, 2.5mm thickness, black

• SADDLE

  1. SEATPOST

     Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50~55cm, 350mm-57~59cm

  2. SADDLE

     Bianchi RC139 Carbon Air, weight 168g, Lenght: 250mm, Wide: 139mm, Rails: 7x9,3mm
