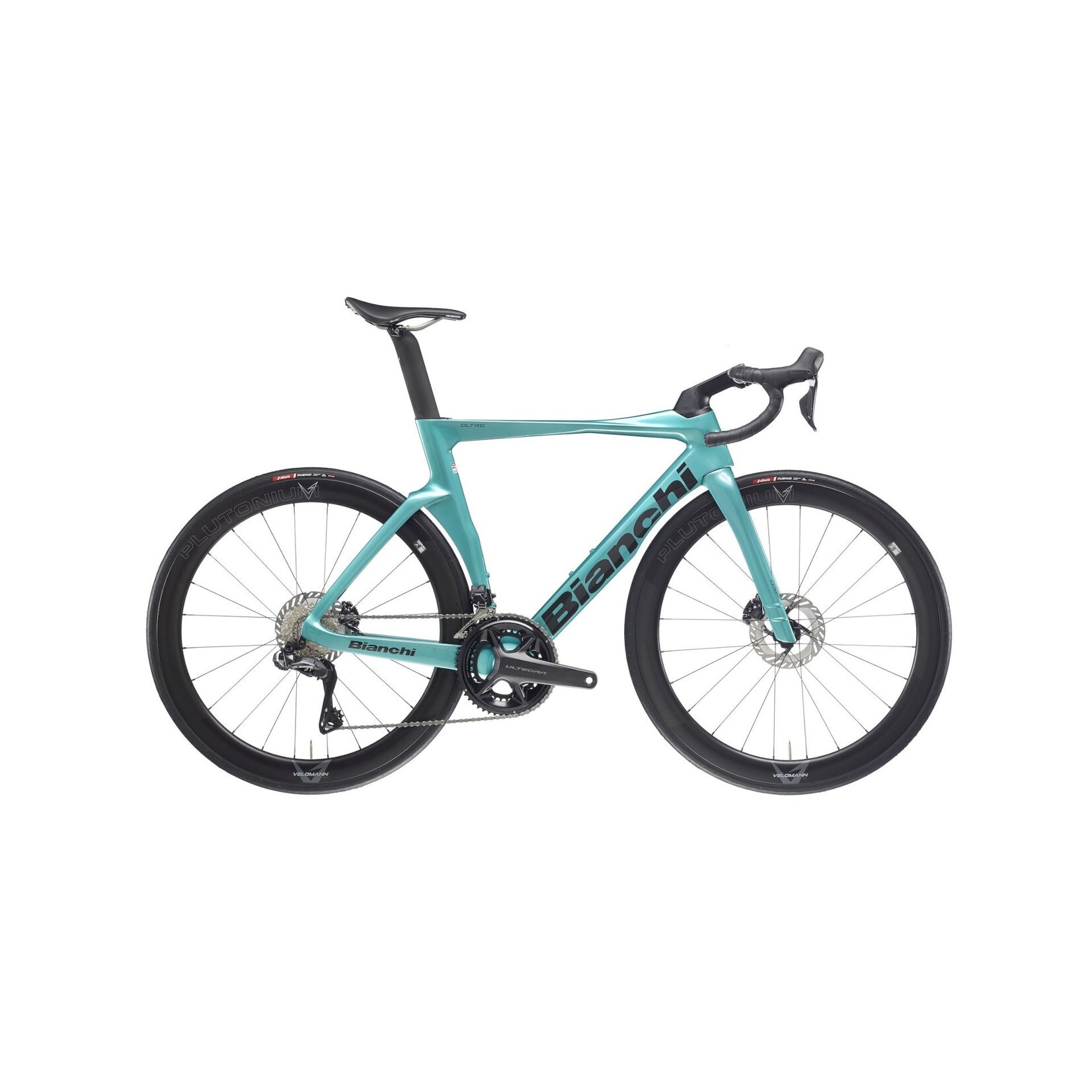

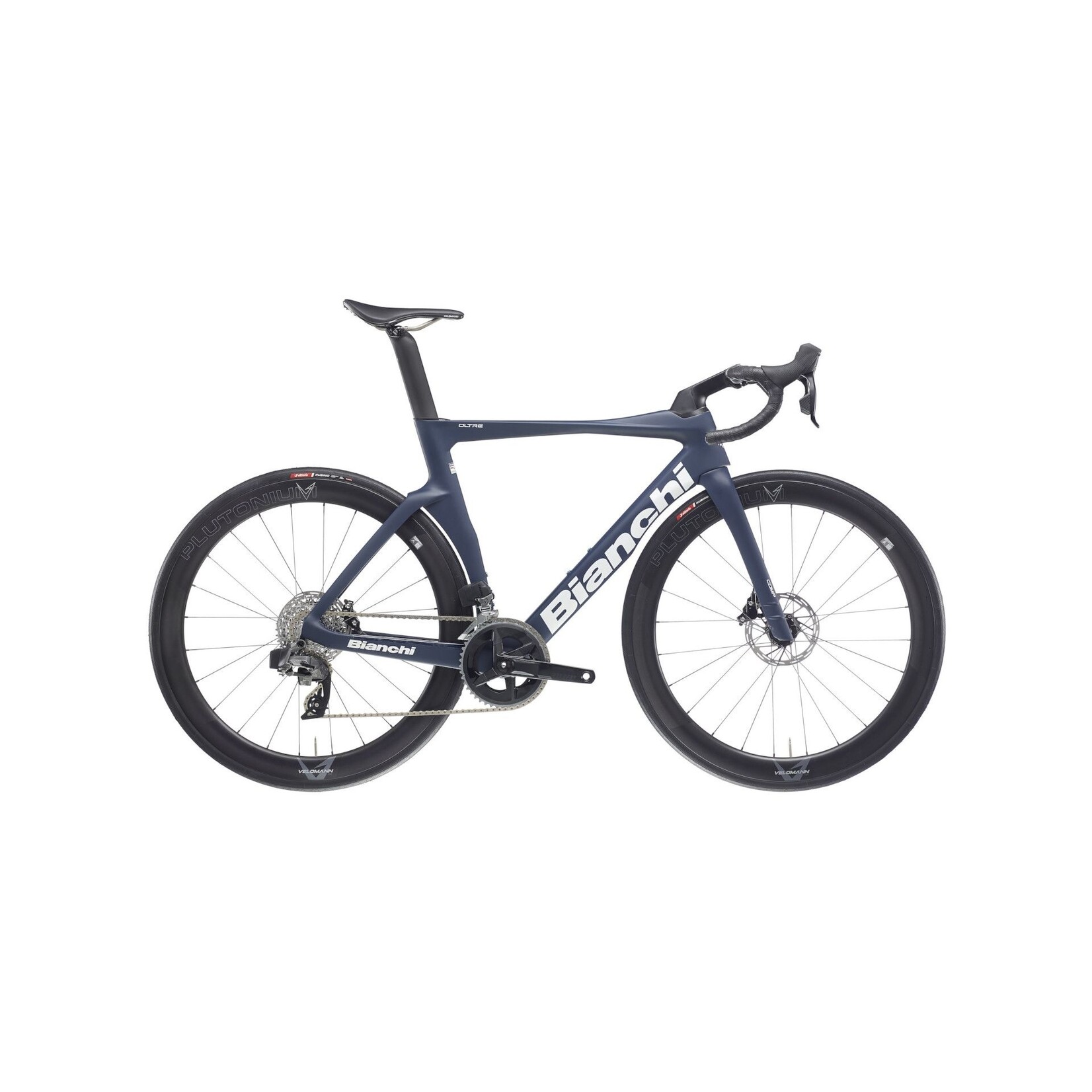

(Please not the image of the bike has the wrong groupset)
Revolutionary Design Thinking
To create an aero bike that controls airflow, Bianchi borrowed ideas from innovative technology sectors, including automotive, aerospace and architecture. The goal is to lead the air to very specific areas of the frame, ensuring airflow is as close to the surfaces of the bike and rider as possible. The far-thinking design is enhanced by a judicious balance of paint and exposed carbon, creating a fearsome racing aesthetic that never for a second compromises on the overall weight of the Oltre.
The Oltre is also equipped with the best Velomann components: Aero handlebar and stem, wheels and saddle.
Features of the Bianchi OLTRE COMP 105 Di2
- Aero frame and fork
- Fully integrated cable routing
- Electronic 2x12-speed Shimano 105 group
- Full carbon aero seatpost, easily adjustable
- Thru axle 12x100/142 mm
- Pirelli P7 tires
Leading the way in aerodynamics
The Oltre was developed using advanced Computational Fluid Dynamics (CFD) simulation software to predict the effects of drag and was wind tunnel tested.
Each movement refined
Each detail of the Oltre is considered, analysed and refined, amplifying the efficiency and power of every pedal stroke. From the down tube to the seat post to the dropouts, every marginal gain has been harnessed.
TECH SPECS
FRAME
Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86,5x41, flat mount brakes, thru axle 12x142mm sizes 47-50-53-55-57-59cm
FORK
Full Carbon aero, disc brakes, integrated head 1,5", thru axle 12x100mm, compatible with 700x30 tire
HEADSET
Fsa TH-073E ACB 1.5" 51.8x40x8
SHIFTERS
Shimano 105 Di2 hydraulic disc brake for road, ST-R7170, BR-R7170, for 160mm rotor
REAR DERAILLEUR
Shimano, 105 Di2 RD-R7150, 12-speed
FRONT DERAILLEUR
Shimano 105 Di2, FD-R7150 12-speed
CRANKSET
Shimano 105 12sp, FC-R7100, Ultegra hollowtech 2, for rear 12- speed, 50x34T, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm
BOTTOM BRACKET
Shimano, SM-BB72-41B, press fit for road, bearing, inner cover
CHAIN
Shimano, 105 12sp, CN-M7100
BRAKES
Shimano BR-R8170 Hydraulic disc brake, included in the shifter
ROTOR
Shimano rotor for disc brake center lock, 160mm
WHEELS
Velomann Carbon V50R 50mm profile, 700x21c, HG body, UD carbon fiber, tubeless ready and clincher, Internal width: 21 mm, weight per set: 1.630g
TIRE
Pirelli P7, 700 x 28c, 60TPI
STEM
Velomann Aero stem, material alloy, Oversize, 1.1/8", size: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm
HANDLEBAR
Velomann Aero Compact handlebar, alloy diam. 31,8mm, reach 74mm, drop 116mm, for fully internal cable routing Size: 400mm-47~53cm, 420mm-55~59cm
GRIPS / EXTENSIONS
Velo soft Velo soft Microfiber tape, black tape, black
SEATPOST
Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50~55cm, 350mm-57~59cm
SADDLE
Velomann Mitora139 Hyper, open flow, carbon rails, carbon-reinforced nylon, Large 139mm Lenght 250mm
