AMFLOW PX CARBON PRO 2027 | AVINOX M2S MOTOR

Key Features

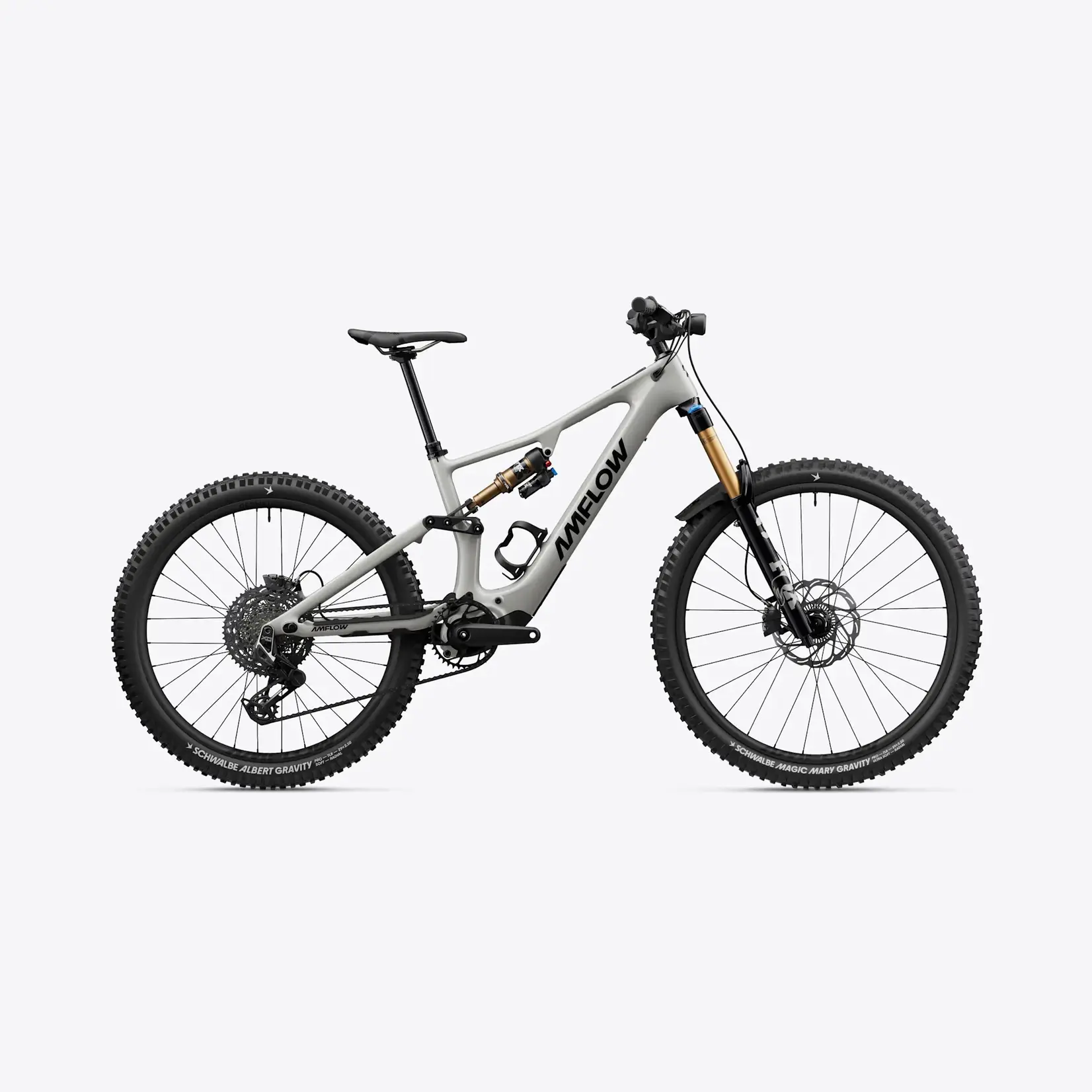

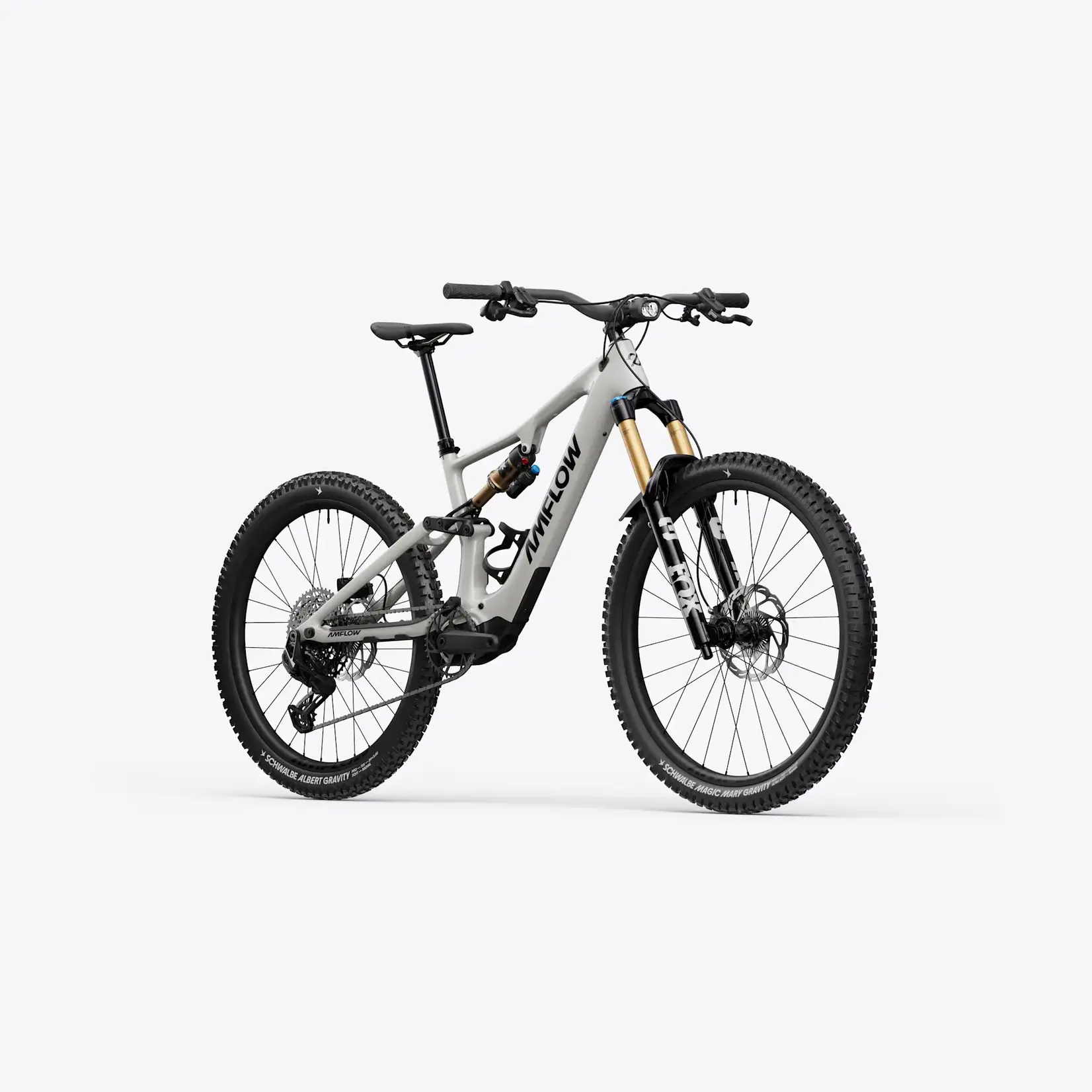

• 2027 Amflow carbon frame in Moonstone Gray

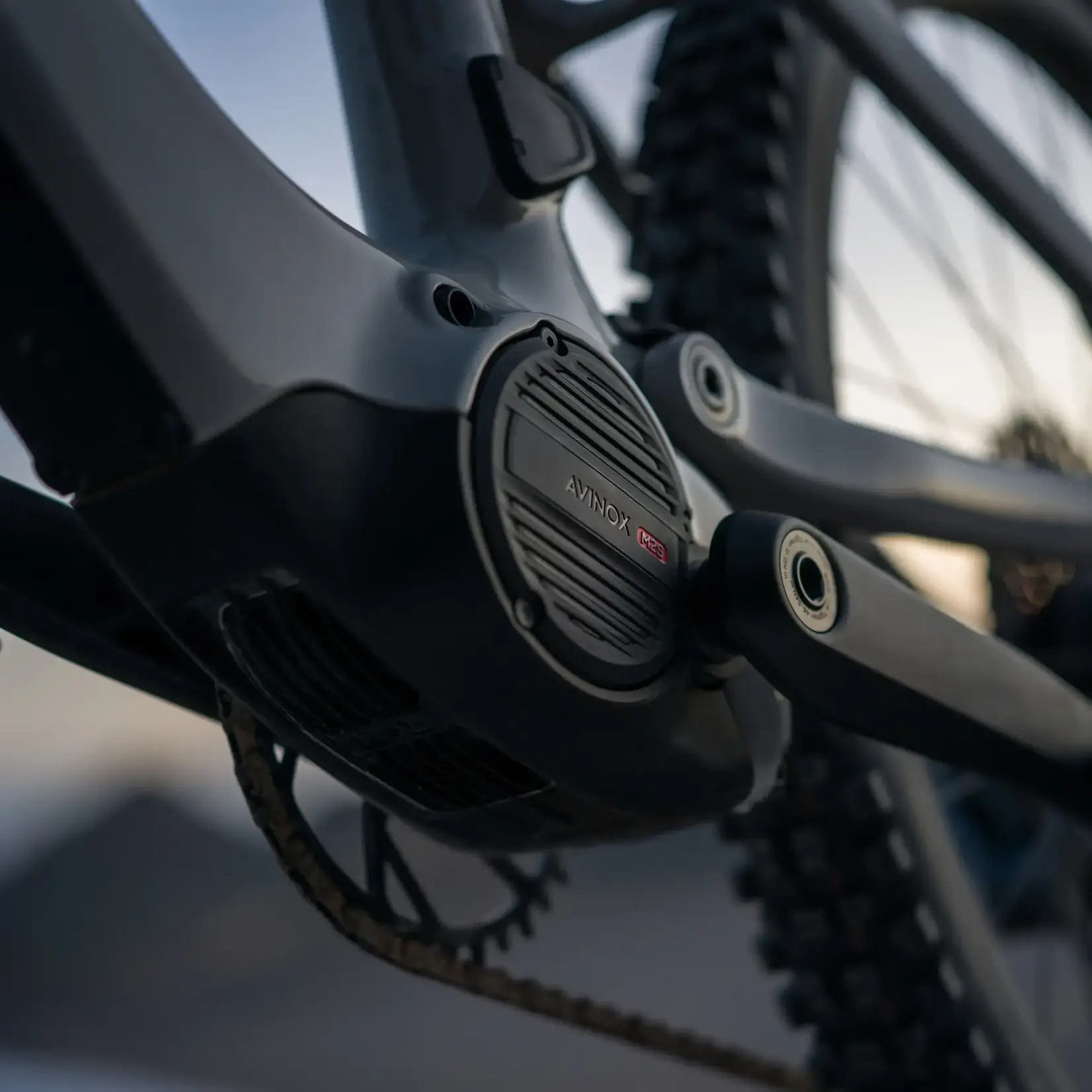

• Avinox M2S Drive Unit with 130 Nm nominal torque and 150 Nm peak
• 700 Wh Avinox Integrated Battery with 12A super-fast charging
• 40 adjustable geometry configurations for precision tuning
• Compatible with 27.5 inch and 29 inch rear wheels

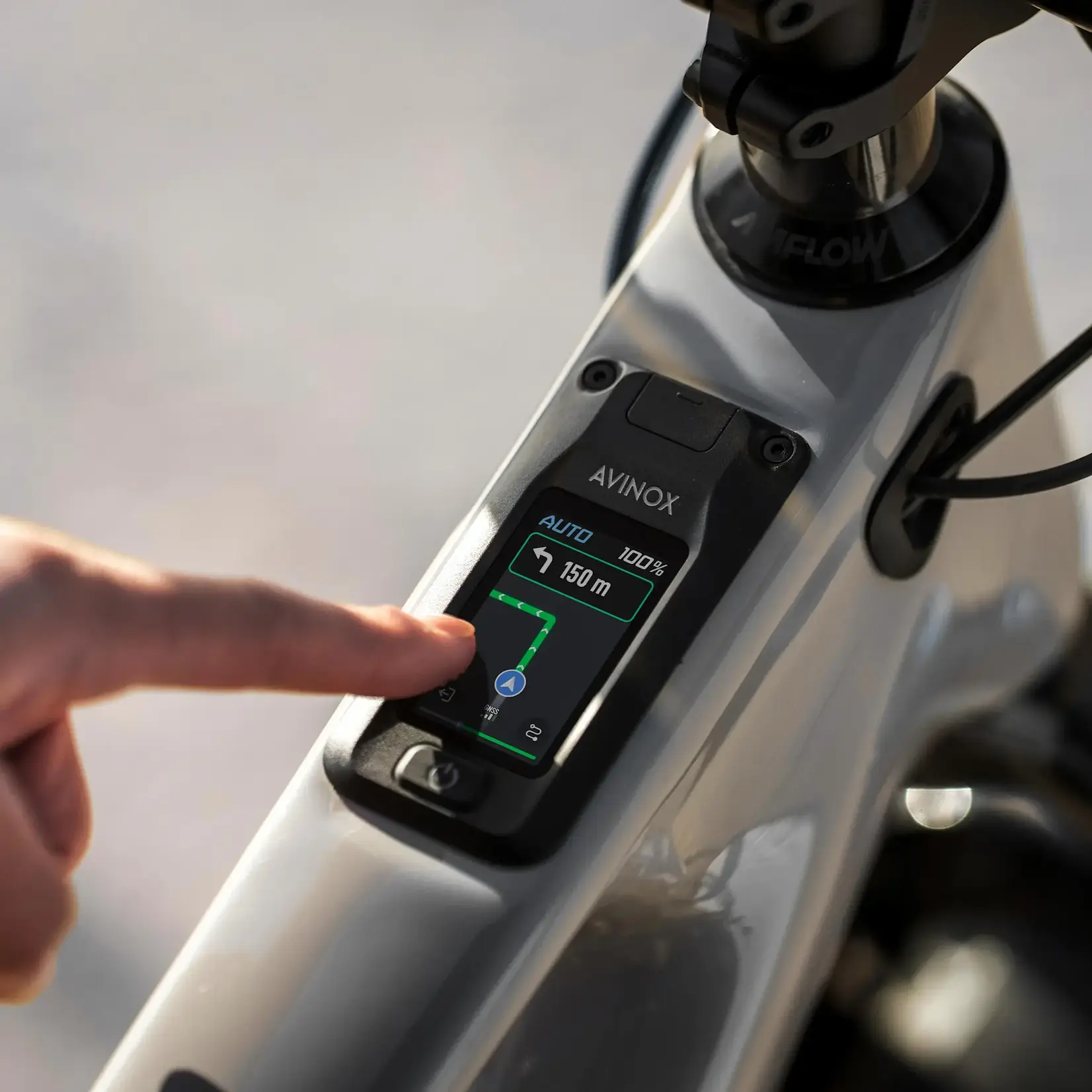

• 2 inch OLED Avinox Control Display with offline navigation
• Wireless Avinox controllers on both sides

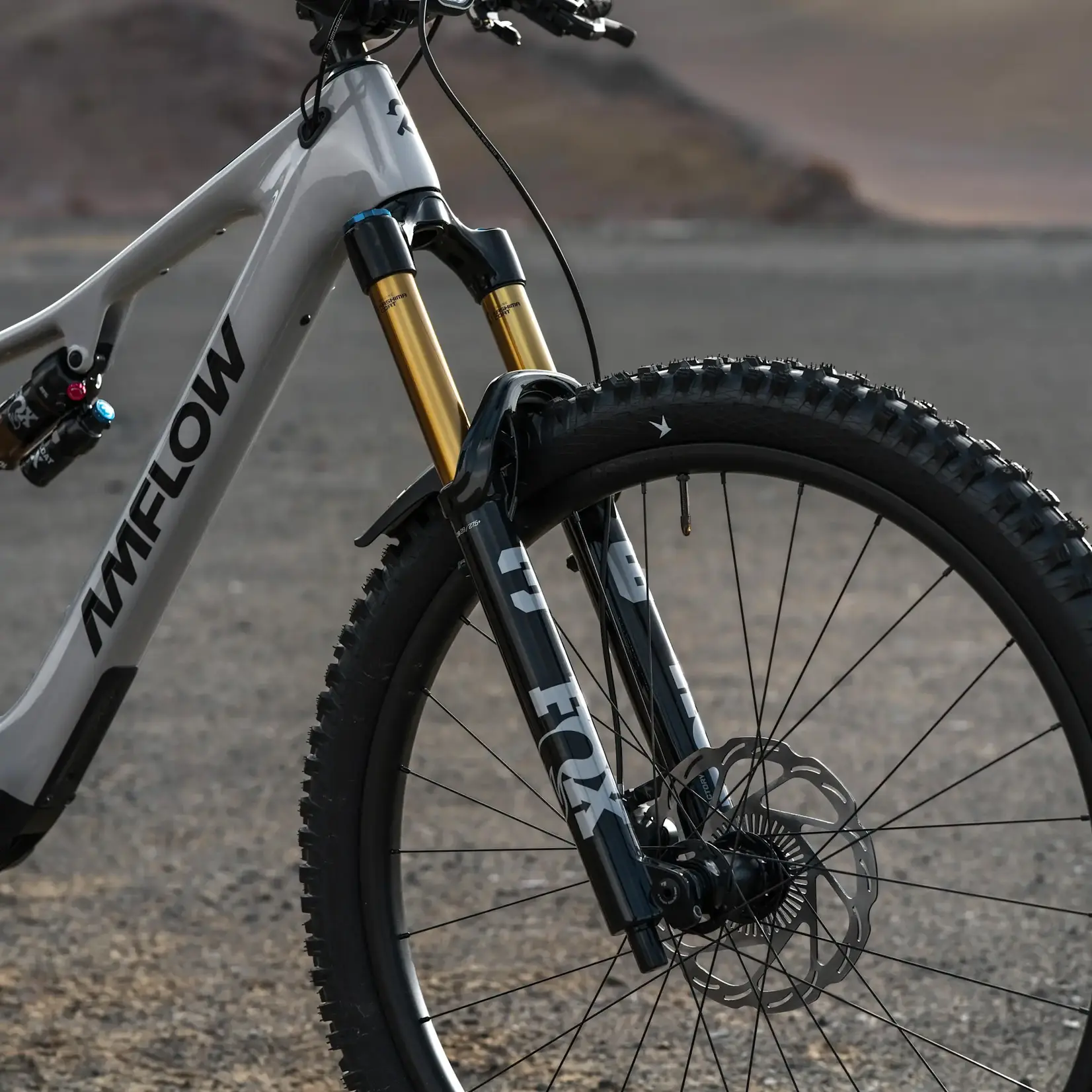

• FOX 36 Factory 160 mm fork with GRIP X2 damper

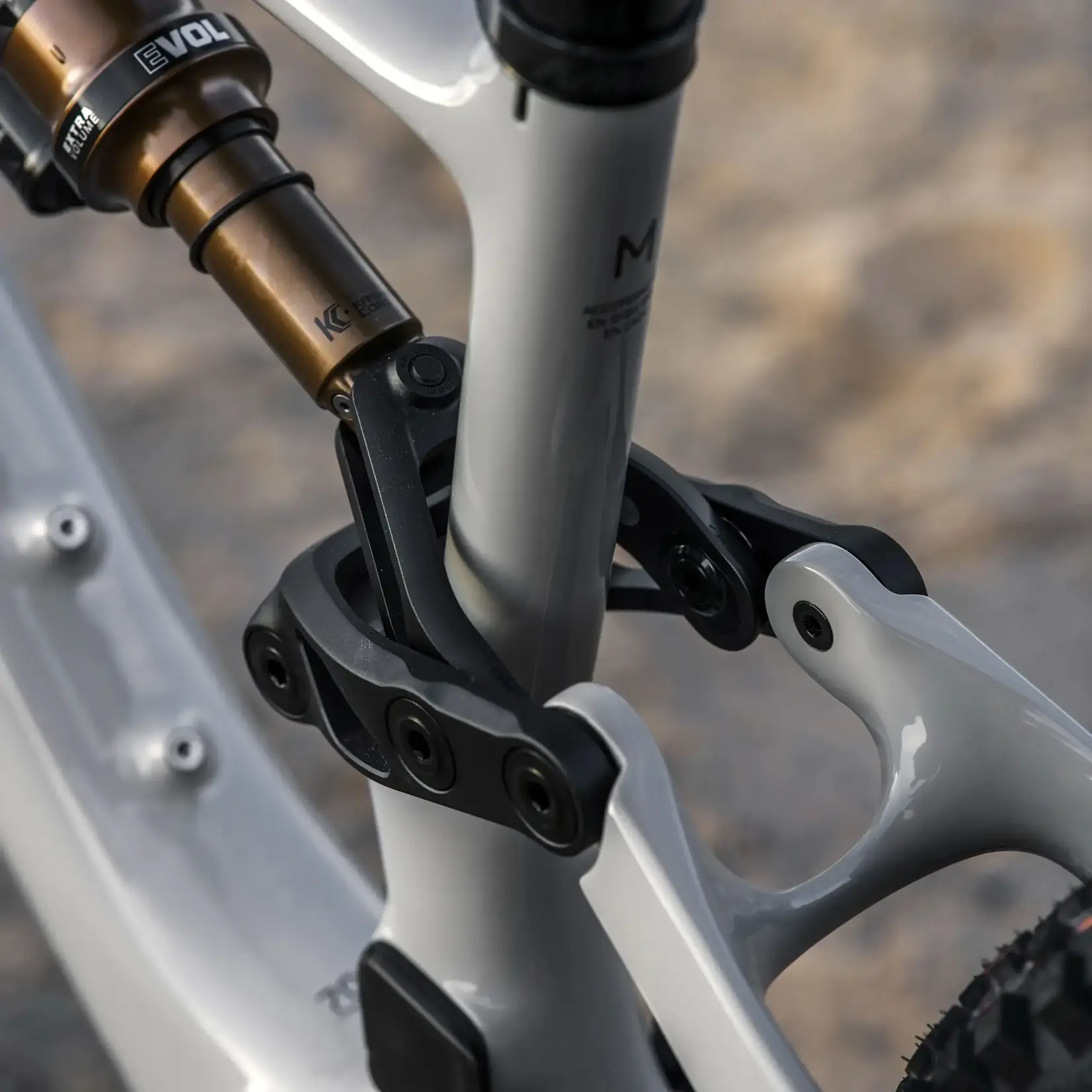

• FOX Float X Factory rear shock with LSC and LSR adjustment
• SRAM X0 Eagle Transmission drivetrain
• Magura Gustav Pro 4 piston brakes with 203 mm rotors
• Amflow XMC-30 carbon mullet wheelset
• Schwalbe Gravity Pro tyres front and rear
• Premium Amflow carbon cockpit, titanium saddle and full accessory kit

Performance

The Amflow PX Carbon Pro 2027 represents the highest level of performance in the PX lineup. Powered by the Avinox M2S Drive Unit, it delivers 130 Nm nominal torque and 150 Nm peak torque with 1500 W peak power, all from a compact 2.59 kg motor. The M2S system uses advanced sensors and intelligent algorithms to provide smooth, natural assistance, adapting output in real time through Auto Mode. For steep climbs and technical bursts, Boost Mode unleashes full torque instantly.

The 700 Wh integrated battery supports 12A super-fast charging, allowing riders to recharge quickly between sessions. Combined with the lightweight carbon chassis, the PX Carbon Pro accelerates rapidly, climbs efficiently and maintains exceptional control on demanding terrain.

Suspension performance is elevated with FOX Factory components. The FOX 36 Factory fork features the GRIP X2 damper with full HSC, LSC, HSR and LSR adjustment, while the FOX Float X Factory rear shock provides precise tuning for aggressive riding. The SRAM X0 Eagle Transmission drivetrain delivers crisp, reliable shifting under load, powered by the Avinox electronic system.

Comfort

The PX Carbon Pro is engineered for all-day comfort and high-speed stability. Its progressive geometry system offers up to 40 configurations, allowing riders to fine-tune head angle, bottom bracket height and chainstay length to match terrain and riding style. The Amflow Enduro Carbon handlebar, lock-on grips and titanium saddle create a secure, ergonomic cockpit for long rides.

The M2S Drive Unit operates as low as 45 dBA, reducing mechanical noise and enhancing trail awareness. This quiet, refined ride feel makes the PX Carbon Pro ideal for technical terrain, long climbs and fast descents.

Design

Finished in Moonstone Gray, the PX Carbon Pro features a premium carbon frame built for strength, agility and modern e-MTB performance. The Amflow XMC-30 carbon wheelset pairs a 29 inch front wheel for stability with a 27.5 inch rear wheel for agility and clearance. Schwalbe Gravity Pro tyres provide exceptional grip and durability across challenging conditions.

Premium components complete the build, including Magura Gustav Pro brakes, SAPIM E-Light spokes, a titanium saddle, carbon handlebar and a full Amflow cockpit with split stem and adjustable dropper post. Integrated front and rear lights, bottle cage, frame protection film and essential tools are included.

Size Guide

Dropper Post Travel
M/L Frame: 190 mm
XL Frame: 210 mm

Adjustable travel spacers included: 0, 5, 10, 15, 20, 25 mm

Wheel Compatibility
Front: 29 inch
Rear: 27.5 inch or 29 inch

Geometry Adjustment Systems
Headset cups: 0.5 degree and 1 degree options
Chainstay flip-chip: multiple length settings
Bottom bracket height: 2 positions
