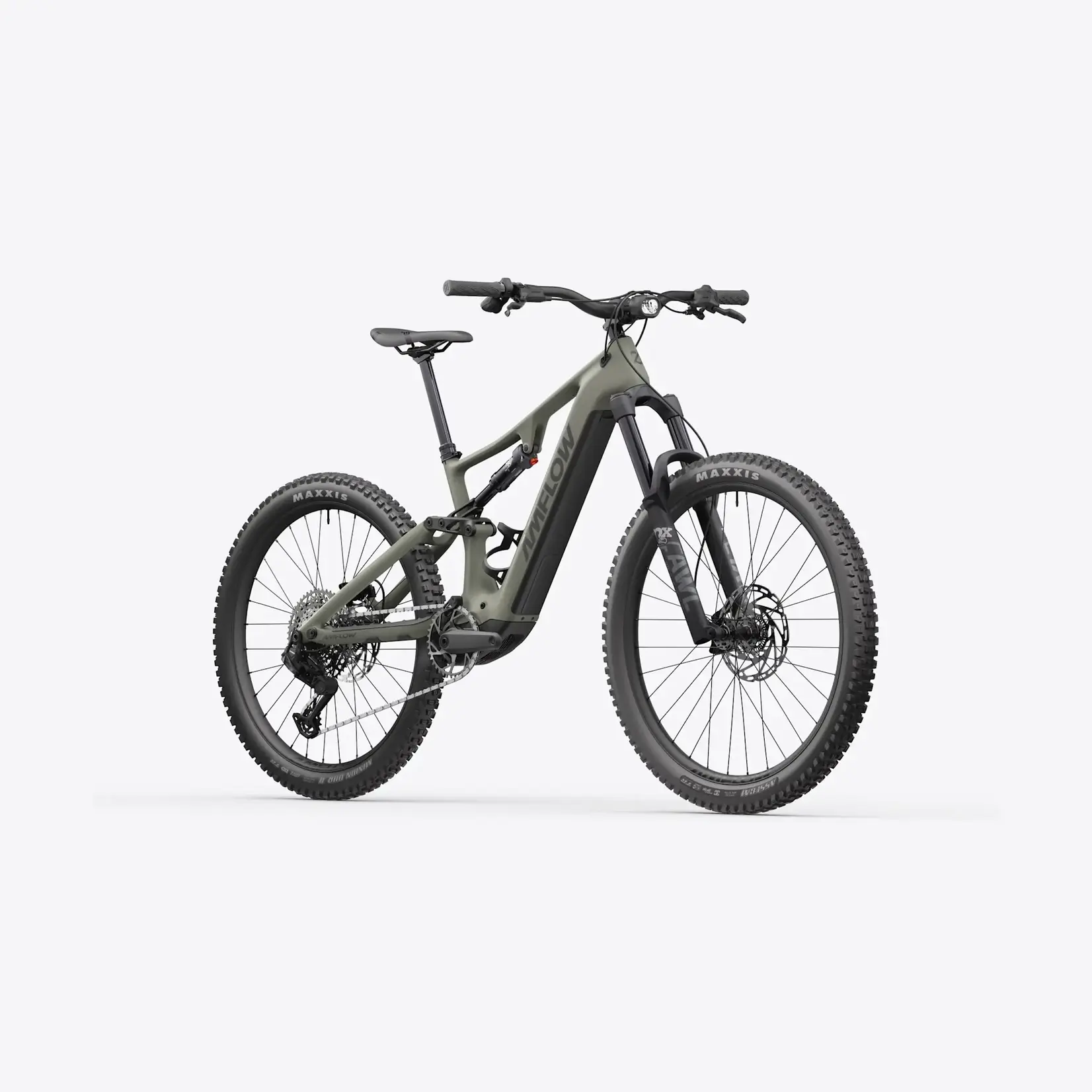

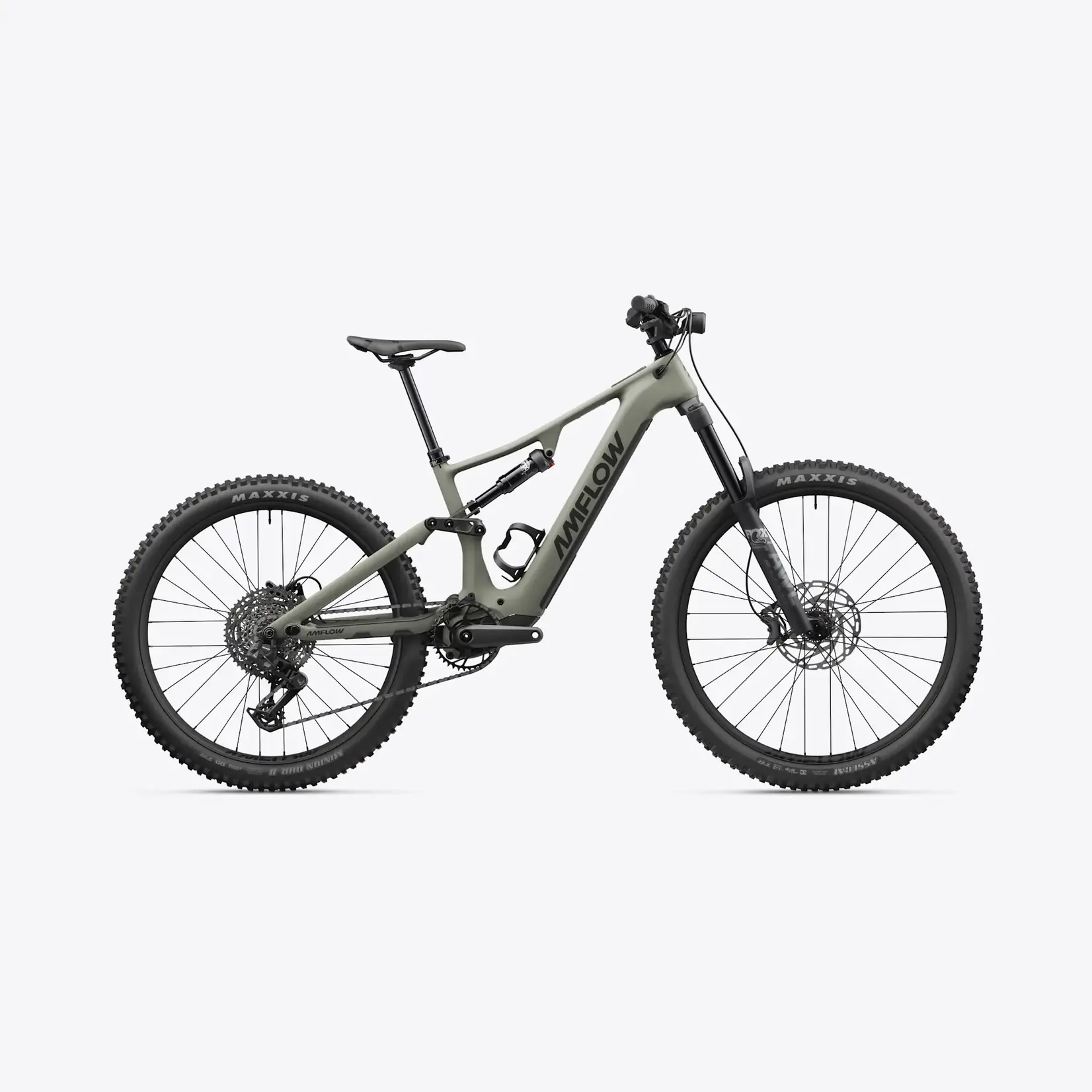

Amflow PR Carbon Electric Mountain Bike

The Amflow PR Carbon is a next-generation full-power electric mountain bike, built for riders who want uncompromising performance without the weight penalty. Designed around a lightweight full-carbon frame and powered by Amflow’s advanced Avinox M2 drive system, this is a serious trail and enduro machine at an exceptional price point.

At £3,999, the PR Carbon sits as the entry into the range — but don’t mistake that for entry-level performance. This is a highly capable, confidence-inspiring e-MTB built to tackle everything from technical climbs to aggressive descents.

Built for Performance

At the heart of the bike is the Avinox M2 motor, delivering up to 125Nm of peak torque with smooth, quiet power delivery. Seamlessly integrated with the SRAM S1000 Eagle Transmission, the system features SmoothShift technology, allowing you to change gear while coasting — ideal for technical terrain and maintaining momentum on changing gradients.

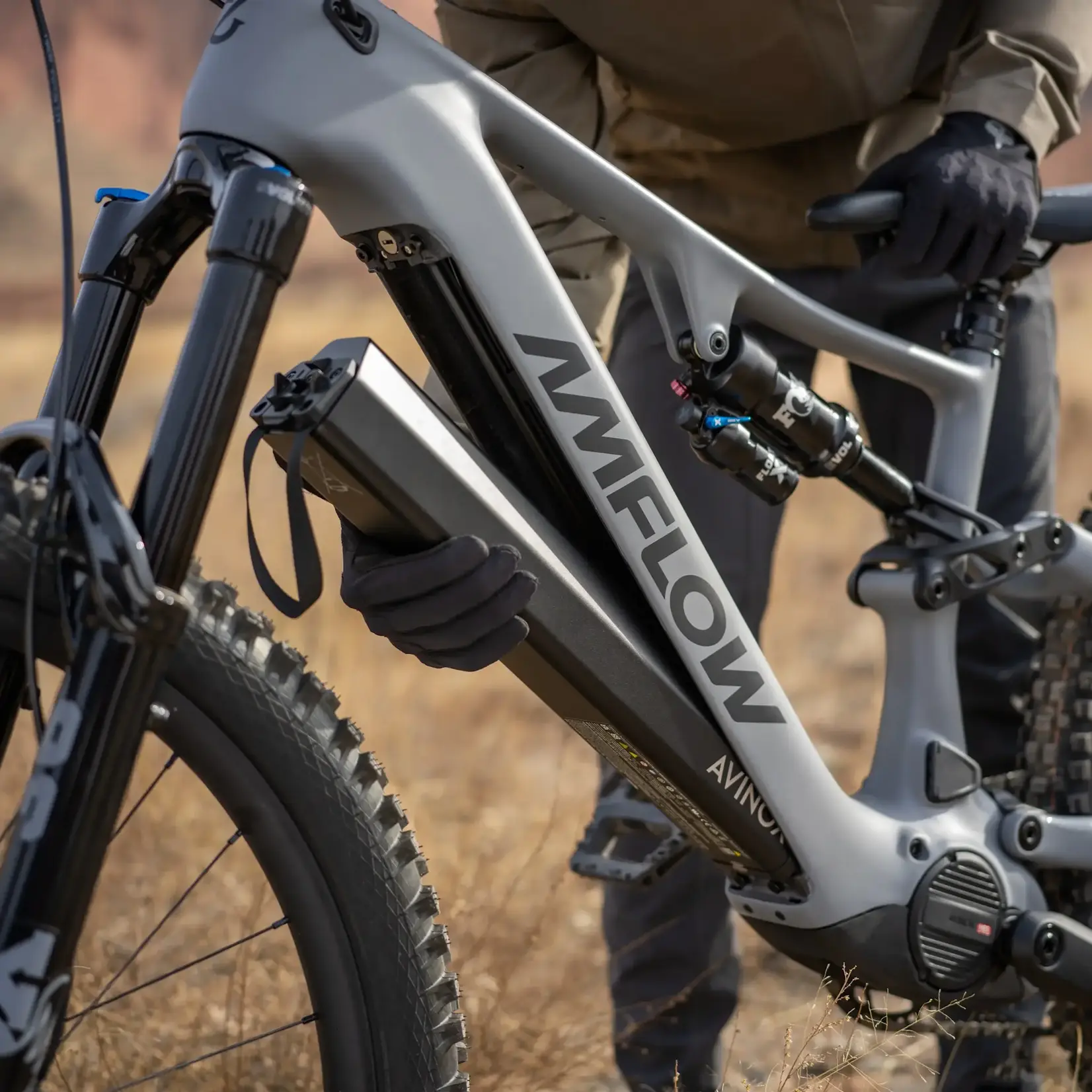

An 800Wh removable battery provides excellent range for long days on the trails. It can be charged on or off the bike, giving you flexibility whether you're riding locally or heading further afield. A 168W charger is included as standard.

Suspension & Trail Control

The PR Carbon is equipped with a FOX AWL HD Sport 160mm fork and FOX Float Rhythm rear shock, both custom-tuned to the bike’s kinematics. The result is a perfectly balanced ride — sensitive over small bumps while remaining supportive when pushing hard.

The mullet wheel setup (29” front / 27.5” rear) delivers the best of both worlds:

• Confidence and rollover capability up front
• Agility and responsiveness at the rear

Paired with Maxxis Assegai (front) and Maxxis DHR II (rear) tyres, you get a proven combination for grip, control and all-conditions performance.

Intelligent Technology

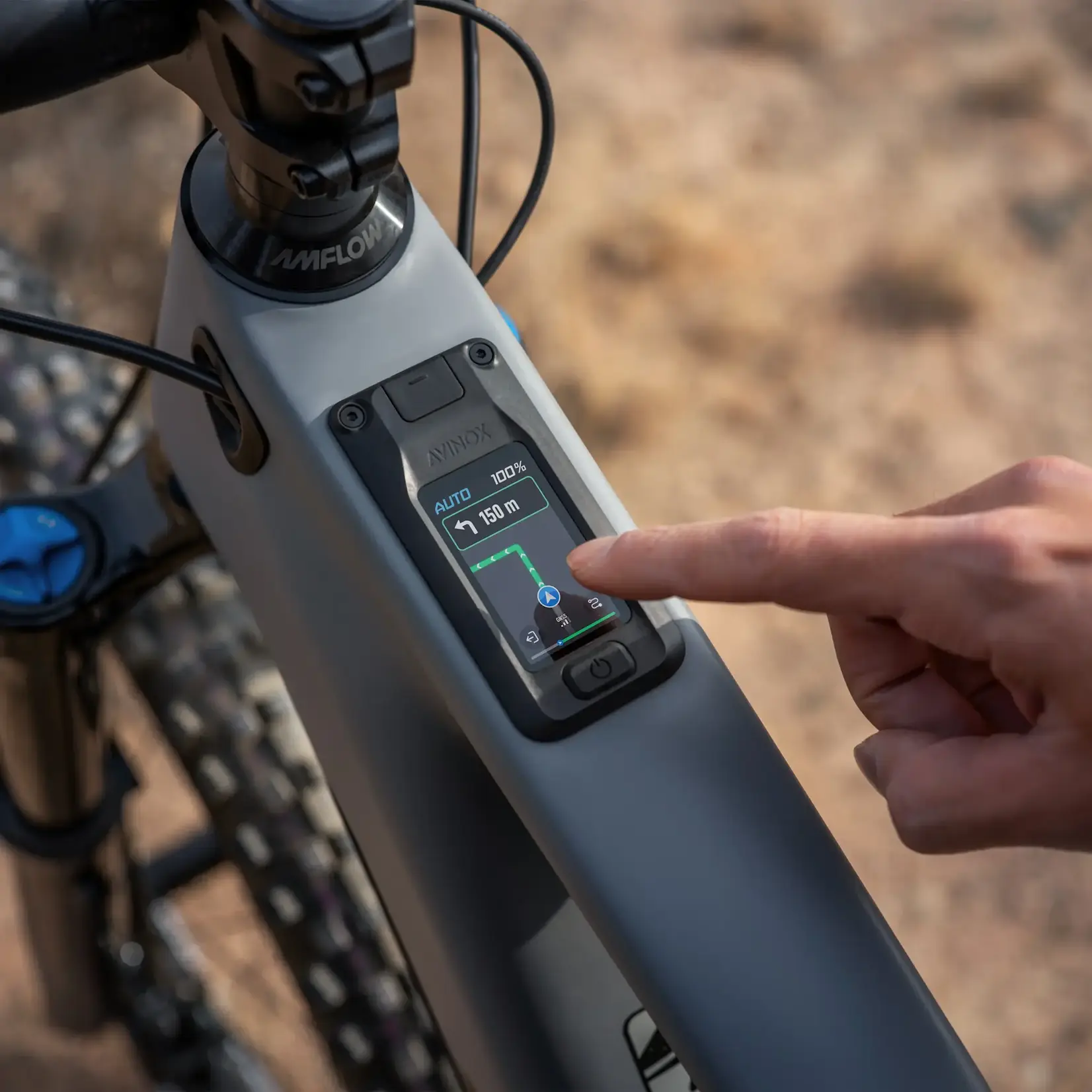

The integrated Avinox OLED display provides full control of your ride, including:

• Motor modes and performance data
• Offline navigation (GPX, FIT, TCX)
• Bluetooth connectivity
• Apple Find My tracking

With Auto Mode, the bike adjusts power delivery in real time, while Boost Mode unlocks maximum assistance when you need it most.

Fully Adjustable Geometry

One of the standout features of the PR Carbon is its fully adjustable geometry system, allowing you to fine-tune the bike to your riding style and terrain.

• Head angle: 5 positions (±1° adjustment)
• Bottom bracket height: 2 settings
• Chainstay length: Adjustable

With up to 40 geometry configurations, you can dial in stability for descents or agility for tighter trails.

Key Features

• Full carbon frame (approx. 2.9kg, size M) – Moss Green finish
• Avinox M2 motor – 110Nm nominal / 125Nm peak torque
• 800Wh removable battery – flexible charging options
• FOX AWL HD Sport fork – 160mm travel, custom-tuned
• FOX Float Rhythm rear shock – custom-tuned performance
• Mullet wheel setup (29” front / 27.5” rear)
• Maxxis Assegai & DHR II tyres – tubeless ready
• Tektro 4-piston hydraulic disc brakes with 203mm rotors
• SRAM S1000 Eagle Transmission with AXS Pod Controllers
• SmoothShift gear-changing while coasting
• Avinox OLED display with navigation & tracking
• Auto & Boost motor modes
• Adjustable geometry system (40 configurations)
• Amflow dropper post (travel varies by frame size)

Included:
Charger, front light, bottle cage, torque wrench, shock pump, pedals and frame protection film

Sizing Guide

The Amflow PR Carbon is available in four sizes. If you're between sizes, reach is the key measurement — longer for a more aggressive position, shorter for a more upright ride.

• Medium (M): 157–173cm | Reach: 452mm | Stack: 626mm
• Large (L): 173–183cm | Reach: 475mm | Stack: 637mm
• XL: 180–191cm | Reach: 500mm | Stack: 649mm
• XXL: 191–198cm | Reach: 527mm | Stack: 662mm
